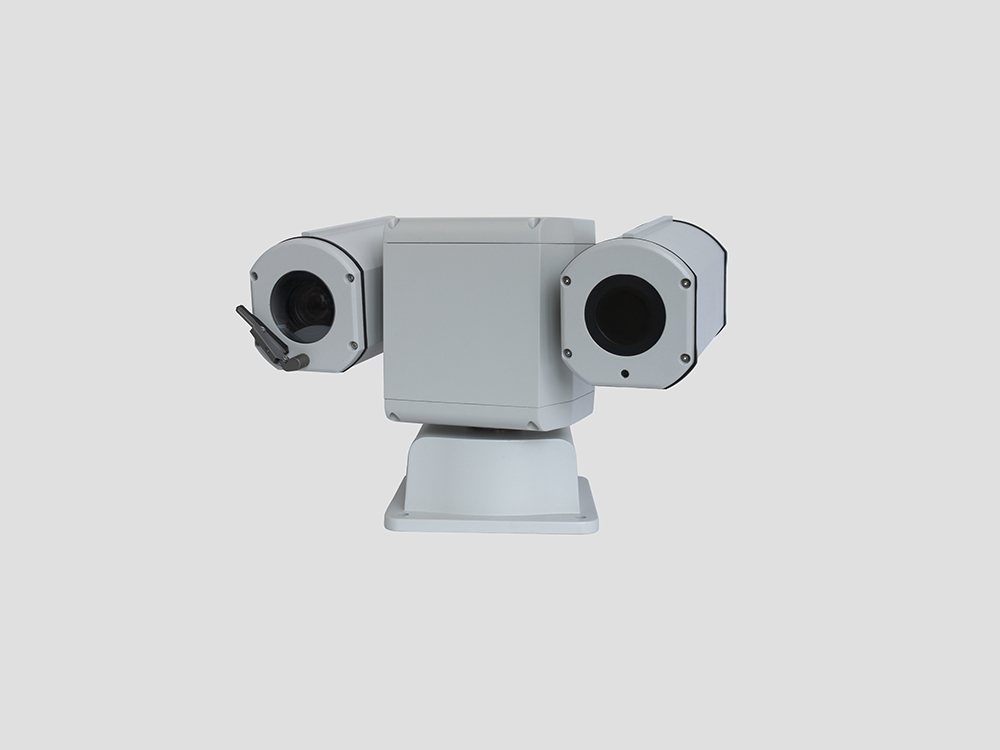

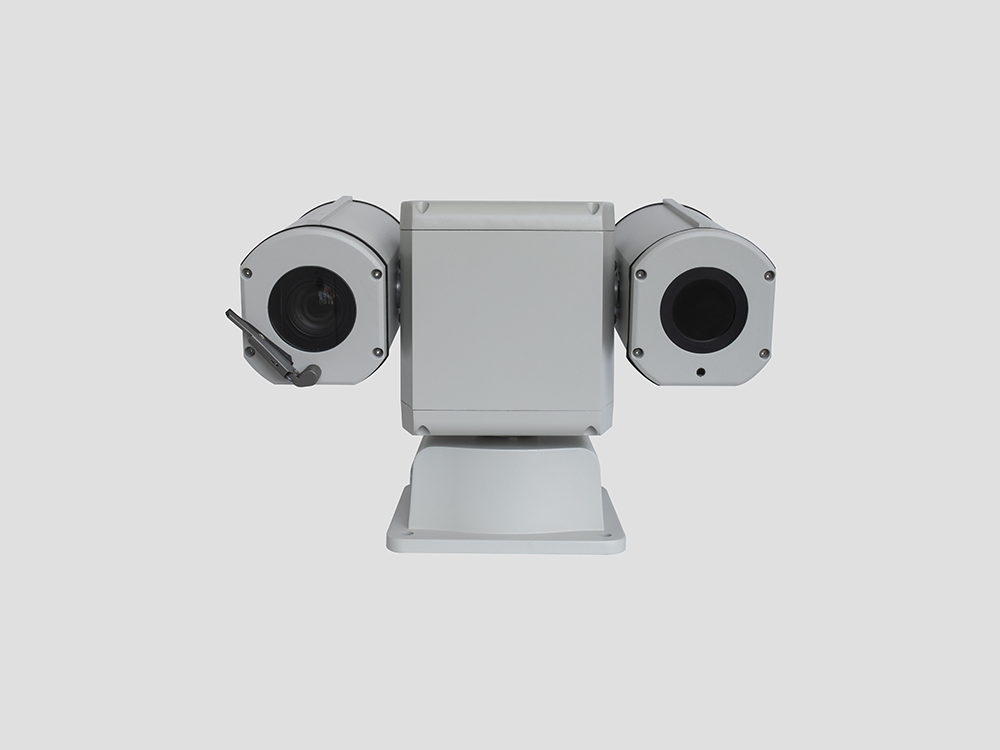

GS-T806-RCX-DT
Optional configuration: Network, SDI
Fill Light Method: Laser or Thermal Image
Features:
l High PTZ positioning accuracy.
l The glass of the camera compartment has an automatic defogging function, which effectively solves the repeated fogging and condensation of the glass caused by the temperature difference in the camera compartment.
l With 3D positioning function, the monitoring operation is convenient.
l With wiper function, the material has good weather resistance and is easy to replace.
l Infrared fill light design, night fill light is more flexible and reasonable. Optional white light
l It has a wide voltage stabilizing module to ensure the power supply adaptability of the PTZ.
l Die cast aluminum alloy design, protection grade IP67.
l Can be extended to install thermal imaging sensor.
l Optional Vehicle shock absorbers.
l The whole system adopts RS485 online upgrade to facilitate the customization and upgrade of PTZ programs
Application：
It can be widely used in vehicle mobile law enforcement, substation, iron tower, inspection robot and other scenes.
|
Optical parameters |
Sensor |
1/1.8 Exmor CMOS |
|
Focal Length |
6-540 mm, 90x optical zoom |
|
|
Aperture |
F1.4-F4.8 |
|
|
Angle of View |
Horizontal 59 – 0.8 degrees |
|
|
MOD |
10mm-1000mm(Wide~Tele) |
|
|
Zoom Speed |
Nearly 9 Sec. |
|
|
Day / Night |
Dual filter switching synchronous image, automatic, color, black and white, timing, threshold control, flip |
|
|
Scanning System |
Progressive scanning |
|
|
Parameter setting |
Maximum Resolution |
Main code stream：1920*1080@25/30fps,1920*720@25/30fps |
|
Mini. Illumination |
0.01Lux @(F1.5,AGC ON)color，0.005Lux @(F1.5,AGC ON)B/W |
|
|
Video Output |
Network coding output |
|
|
Image Adjustment |
Adjustable brightness, contrast, saturation, sharpness, chroma, etc |
|
|
Image Settings |
The zoom module function can be adjusted through the client or IE browser |
|
|
General Parameters |
Area occlusion, anti flicker, defogging, corridor mode, mirroring, flipping, backlight compensation, strong light suppression, exposure compensation, gain, bad point compensation, watch, power off memory, pattern scanning |
|
|
ROI |
4 Regional Settings |
|
|
Focus Mode |
Auto/Manual/One Focus |
|
|
Exposure Mode |
Auto Exposure/Aperture Priority/Shutter Priority/Manual Exposure |
|
|
Electronic Shutter |
1/25~1/100000 |
|
|
White Balance |
Automatic 1/automatic 2/indoor/outdoor/manual/sodium lamp/fluorescent lamp |
|
|
Wide Dynamic |
Super wide dynamic, automatic wide dynamic, 0-100 digital adjustment |
|
|
Digital Noise Reduction |
2D / 3D |
|
|
Lens Initialization |
built-in |
|
|
Signal System |
PAL/NSTC |
|
Thermal imaging performance： |
|
|
Detector Type |
Uncooled Vanadium Oxide Detector |
|
Resolution/Pixel Spacing |
640*512 (or other specifications optional) |
|
Response Band |
8~14μm |
|
Sensitivity |
≤50mk@300K |
|
Frame Rate |
25Hz |
|
Focal Length |
100mm |
|
Focus Mode |
Fixed focus |
|
Color Palette |
Various color palettes are available (including iron red, rainbow, black and white, etc.), and color scales can be customized |
|
Image Processing |
Non-Uniformity Correction |
|
Digital Filter Noise Reduction |
Support |
|
Digital Detail Enhancement |
Support |
|
PTZ： |
|
|
Pan fastest speed |
20°/S |
|
Tilt fastest speed |
10°/S |
|
Pan manual control speed |
0°—20°/S |
|
Tilt manual control speed |
0°—10°/S |
|
Pan range |
360°endless rotation |
|
Tilt range |
-90°— +90° |
|
Self-locking Function |
Up-down self-locking motor |
|
Preset |
255 positions |
|
Wiper function |
Support |
|
Relative Humidity |
<90% |
|
IP |
IP66 |
|
Working Temperature |
-40°C — +65°C |
|
Power Range |
AC24V ±10% 45W Max/ DC24V optional |
|
Wiper Function |
Support |
|
Weight |
10kg |
|
Cable outlet |
Go out from the side |

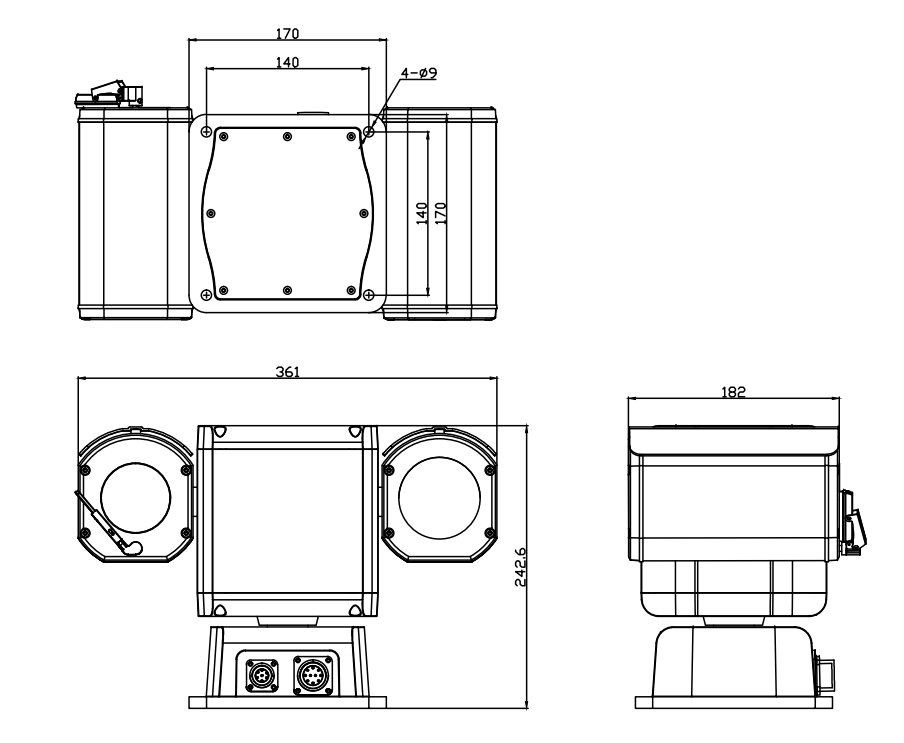

Dimension (mm):

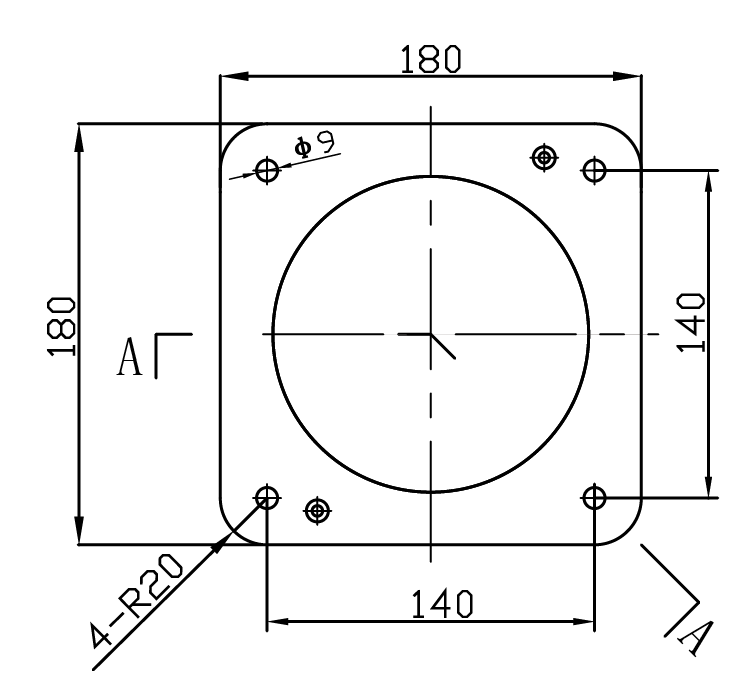

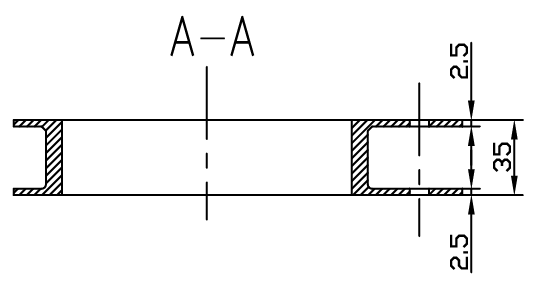

抗震器尺寸（选配）
