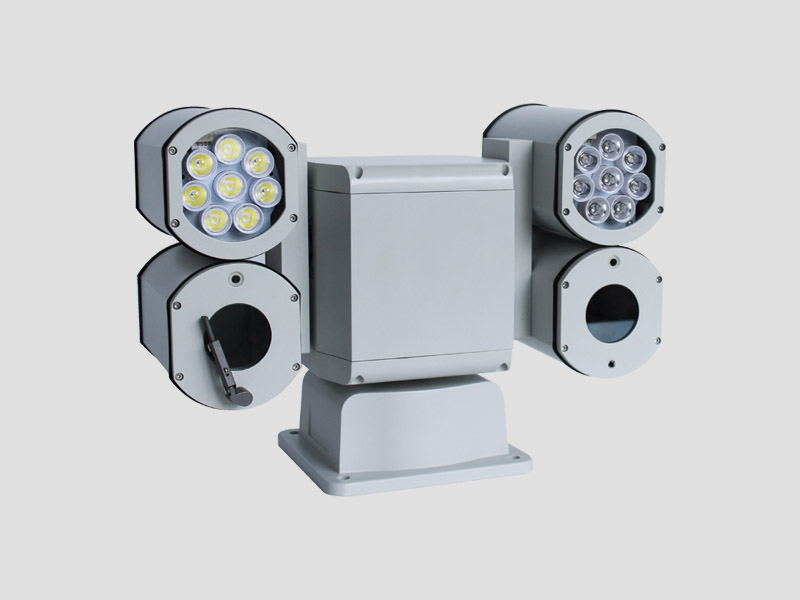

GS-T806-HD-3L Series
Optional configuration: Network, SDI, Network + SDI dual output
Supplementary light mode: Any combination of infrared, white light, laser, thermal imaging, etc.
Features：
l The glass of the camera compartment has an automatic defogging function, which effectively solves the repeated fogging and condensation of the glass caused by the temperature difference in the camera compartment.
l With 3D frame selection function, the monitoring operation is convenient.
l With wiper function, the material has good weather resistance and is easy to replace.
l Infrared fill light design, more flexible and reasonable fill light at night. White light, laser, thermal imaging are also optional.
l Equipped with a wide voltage regulator module to ensure the power supply adaptability of the PTZ.
l Die-casting aluminum alloy design, protection grade IP66.
l Vehicle shock absorber for optional.
The whole system adopts RS485 online upgrade, which is convenient for customization, upgrade and update of the PTZ programs.
Infrared :Imported array infrared lamps, multi-group angle coordination, service life can reach up to 30,000 hours, and the night vision distance 100-120 meters.
White light :Using high-intensity dot-matrix white light-emitting chips, the night vision distance is 80-100 meters.
Laser :Imported 808nm laser machine which is used to achieve synchronous zooming. the angle is adjustable or automatically adjusted according to the multiple of the camera, the laser spot angle is 1° to 50°, and the laser power is optional.
Thermal imaging :The Thermal imaging equipment can be customized.
Product application:
It can be widely used in 110 police car mobile law enforcement, fire emergency command , 120 emergency command system, Road administration mobile patrol, urban management security law enforcement, Special vehicle mobile inspection, inspection robot
PTZ Specifications：
|
PTZ： |
|
|
Pan preset speed |
100°/S |
|
Tilt preset speed |
80°/S |
|
Pan manual control speed |
0°—60°/S |
|
Tilt manual control speed |
0°—40°/S |
|
Pan angle |
360°endless rotation |
|
Tilt angle |
-90°—+90° |
|
Preset point |
256 positions 6 tracking |
|
Control method |
RS485, Built-in 16 protocol, Baud Rate from 2400Bps to 19200Bps optional |
|
Relative humidity |
<90% |
|
Protection level |
IP66 |
|
Working temperature |
-40°C — +65°C |
|
power |
DC12V or wide voltage optional |
|
impact resistance requirement |
≥4G |
|
wiper |
Support |
|
Installation |
A variety of installation methods are optional according to the application environment |
|
weight |
7kg |
Zoom module：Optional
|
Sensor |
1/2.8" Progressive Scan CMOS |
|
Resolution |
50HZ:25fps(1920X1080) 60HZ:30fps(1920X1080) 50HZ:25fps(1280X720) 60HZ:30fps(1280X720) |
|
Zoom |
4MP 33X optical zoom,16X digital zoom |
|
Min Illumination |
color：0.01Lux @ (F1.6，AGC ON) B/W：0.001Lux @ (F1.6，AGC ON) |
|
SNR |
＞52dB |
|
Focal Length |
5.5-180mm |
|
Aperture Value |
F1.6-F4.3 |
|
Horizontal field of view |
57-2.3 ° (Wide-Tele) |
|
Close-up |
100mm-1500mm(Wide~Tele) |
|
Zoom Speed |
3.5 Sec. (Optical, Wide~Tele) |
|
Day and night mode |
ICR Filter type |
|
Focus mode |
Automatic/Manual/Semi-automatic |
|
Exposure mode |
Auto Exposure/Aperture Priority/Shutter Priority/Manual Exposure |
|
Day and night mode |
Auto/color/black and white/timing/alarm input trigger |
|
Electronic shutter |
1/1S ~ 1/30,000S |
|
White balance |
Auto 1/Auto 2/Indoor/Outdoor/Manual/Incandescent/Fluorescent |
|
BLC |
Off/Up/Down/Left/Right/Center/Auto |
|
Dead point compensation |
Off/Up/Down/Left/Right/Center/Auto Support |
|
Digital noise reduction |
3D |
|
Lens initialization |
built-in |
|
Image quality adjustment |
Brightness, contrast, sharpness, saturation can be adjusted |
|
Digital zoom |
16x |
|
Video compression |
H.264 |
|
Compressed output code rate |
32kbps-16Mbps |
|
Audio compression |
G.722.1、G.711-a law、G.711-u law、MP2L2、G.726、AAC、PCM |
|
Storage function |
Support Micro SD/ Micro SDHC /Micro SDXC storage |
|
Image settings |
Zoom module function can be adjusted through the client or IE browser |
|
Intelligent alarm |
Motion detection, tampering alarm, memory full, memory error, audio anomaly detection, cross-border detection, area intrusion detection |
|
Supporting protocol |
TCP/IP、HTTP、DHCP、DNS、DDNS、RTP、RTSP、PPPoE、SMTP、NTP、UPnP、SNMP、FTP、802.1x、QoS、HTTPS、IPv6 (SIP、SRTP、OPTIONAL)、GB28181、E-HOME |
|
Interface Protocol |
ONVIF、ISAPI、SDK |
|
Three streams |
Support |
|
Heartbeat function |
Support |
|
Security Mechanism |
Password protection, multi-user access control |
|
External Interface |
36pin FFC (including network port, RS485, RS232, CVBS, SDHC, Alarm In/Out, Line In/Out, power supply) |

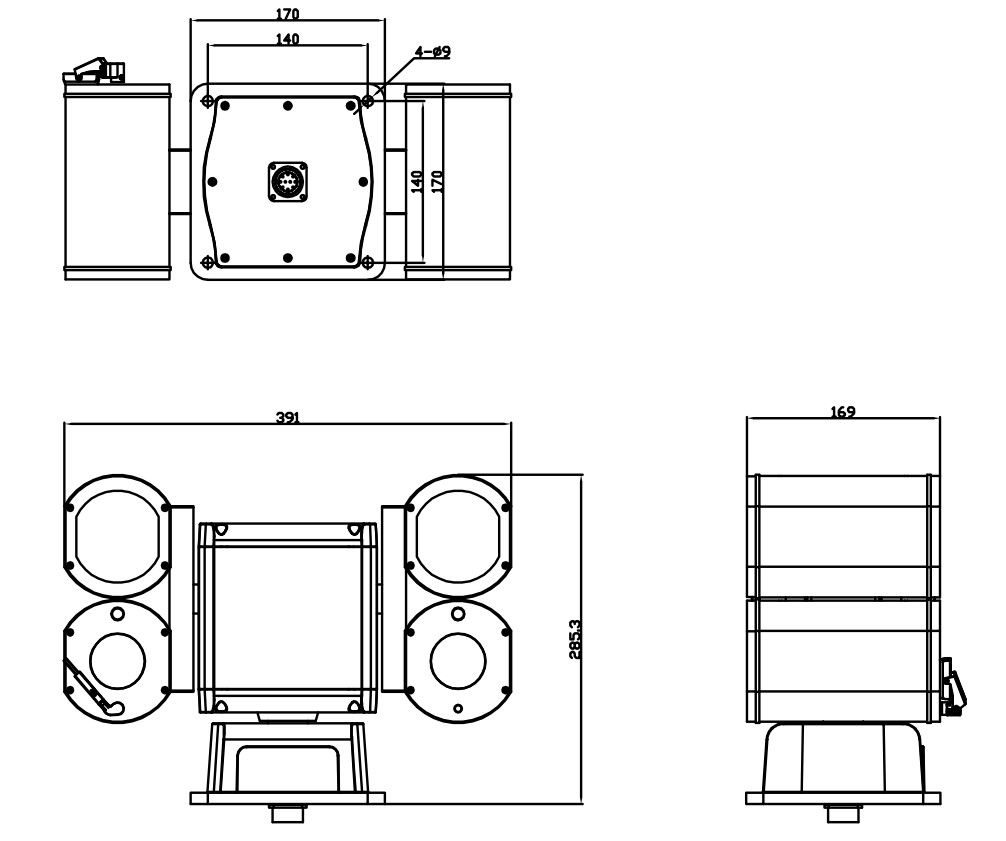

Dimension：（MM）
