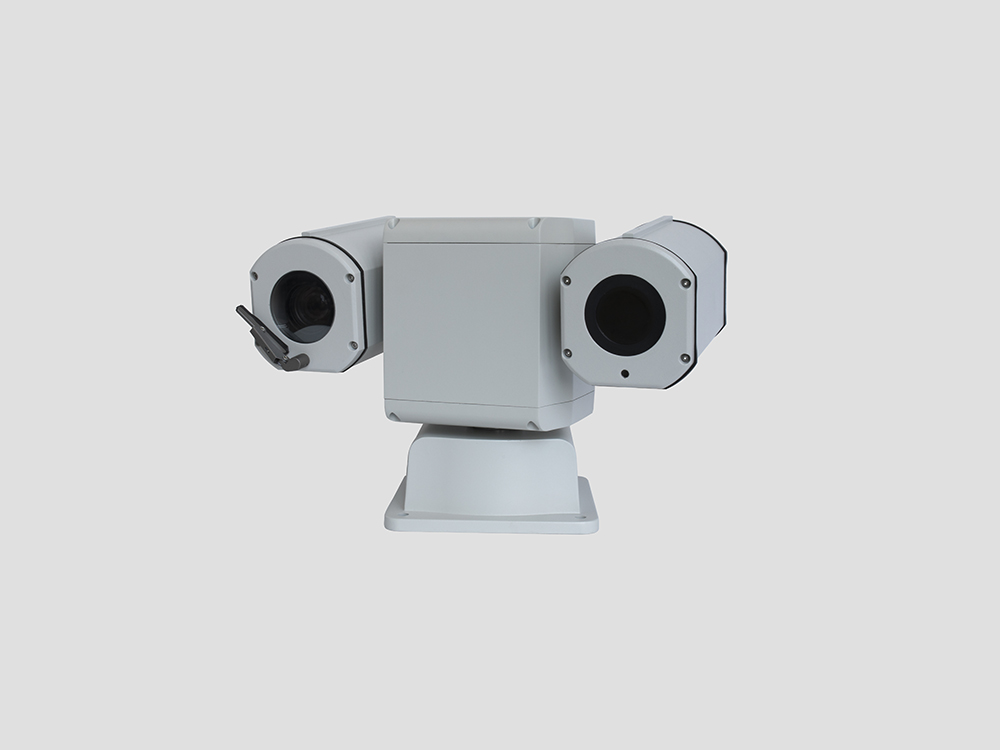

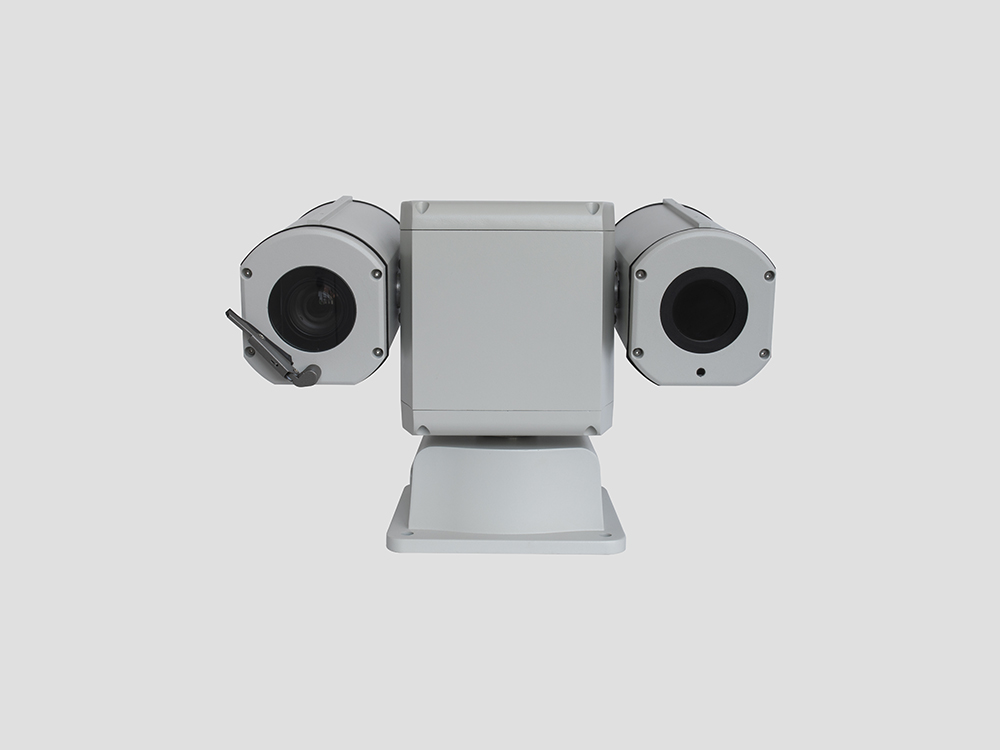

HOME Products High definition car mounted pan tilt camera GS-T806

Intelligent PTZ camera


GS-T806




Optional Configuration: Network, SDI, Network + SDI dual output

Lighting Mode: Infrared, White Light, Laser

Thermal Imaging:50mm

Features:

l The glass of the camera compartment has an automatic defogging function, which effectively solves the repeated fogging and condensation of the glass caused by the temperature difference in the camera compartment.

l With 3D frame selection function, the monitoring operation is convenient.

l With wiper function, the material has good weather resistance and is easy to replace.

l Infrared fill light design, more flexible and reasonable fill light at night. White light is also available.

l The voltage stabilizing module has wide adaptability to power supply.

l Die cast aluminum alloy design, protection grade IP66.

l It can be expanded and equipped with thermal imaging sensor.

l Optional on-board shock absorber.

l The whole system adopts RS485 online upgrade to facilitate the customization, upgrade and update of PTZ programs.



Infrared :Imported array infrared lamps, multi-group angle coordination, service life can reach up-to 30,000 hours, and the night vision distance 100-120 meters.

White light :Using high-intensity dot-matrix white light-emitting chips, the night vision distance is 80-100 meters.

Laser :Imported 808nm laser which is used to achieve synchronous zooming, the angle is adjustable or automatically adjusted according to the multiple of the camera, the laser spot angle is 1° to 50°, and the laser power is optional

Thermal Imaging :The Thermal imaging equipment can be customized.



Product Application:

It can be widely used in vehicle mobile law enforcement, substation, iron tower, inspection robot and other scenes.





PTZ



Pan Fastest Speed

120°/S

Tilt Fastest Speed

100°/S

Pan Manual Speed Control

0°—100°/S

Tilt Manual Speed Control

0°—80°/S

Pan Angle

360°endless rotation

Tilt Angle

-90°— +90°

Preset

256 positions

Wiper

support

Fill Light

IR:>100M

Relative Humidity

<90%

Protection Level

IP66

Working Temperature

-40°C — +65°C

Power Range

AC24V ±10% 45W Max/ DC9-30V for optional

Weight

6kg



Camera parameters: (the zoom module is optional)

Sensor

1/2.8 Exmor CMOS

Zoom

33x optical zoom

12x digital zoom

Focal Length

f=5.5mm-180mm

Effective Pixels

2MP 1080P

SNR

≥50dB

Minimum Illumination

0.001Lux (color)

0.0001Lux (B/W)

BLC

ON/OFF

White Balance, Aperture, Focus

Automatic / Manual

Color/Black and White Automatic Conversion

Automatic

Electronic Shutter

1/1~1/10,000s

Electronic Fog Penetration

SUPPORT

Electronic Image Stabilization

SUPPORT

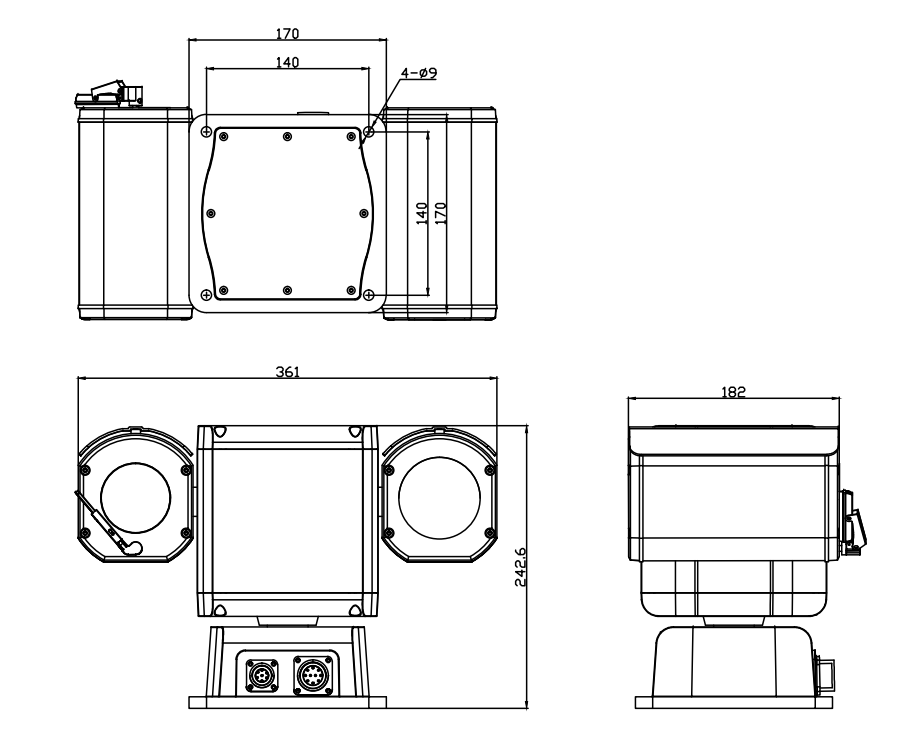

Dimension (mm):

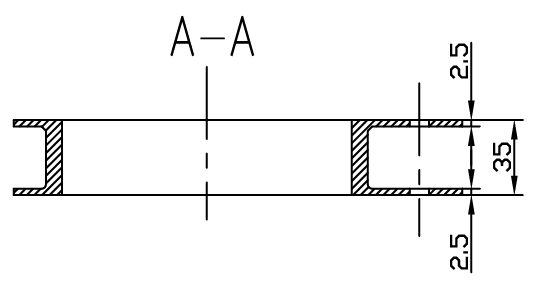

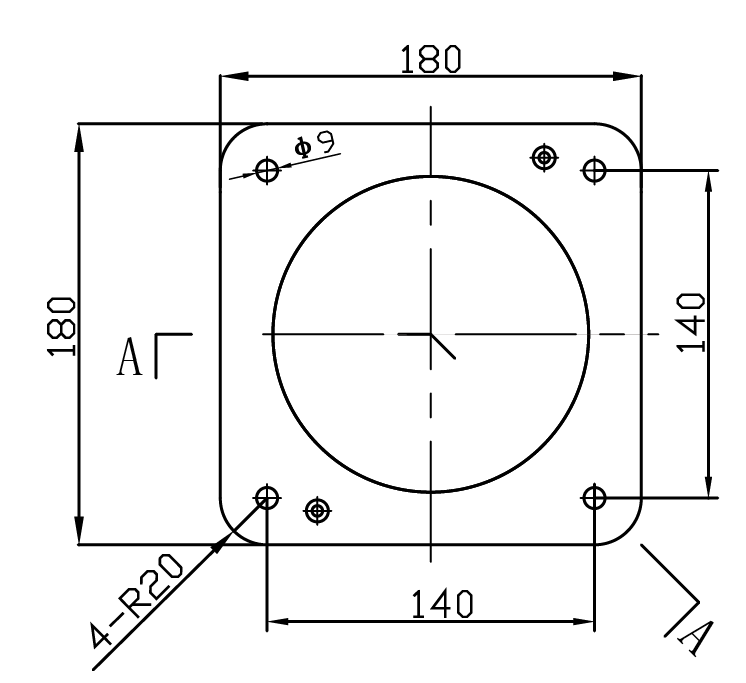

Shock Absorber:
