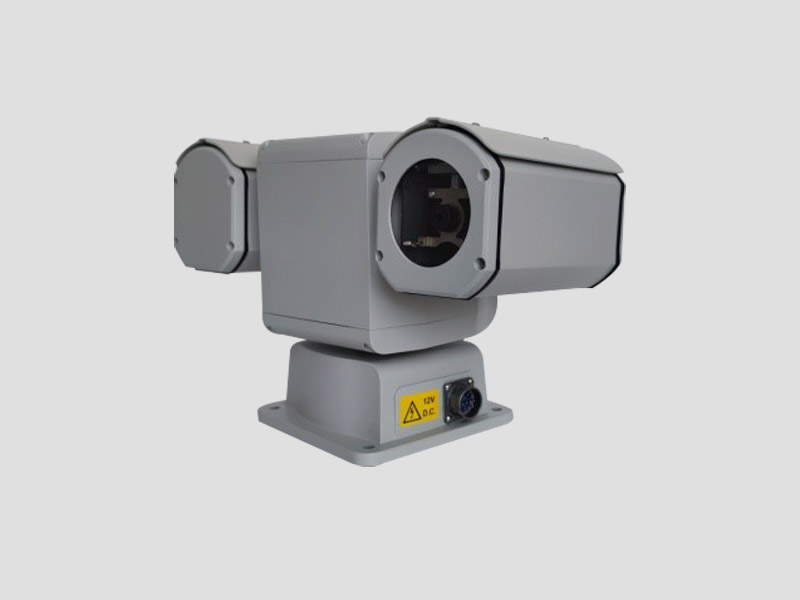

Laser intelligent bird repellent high-speed PTZ

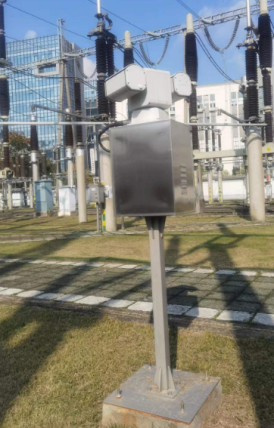

For birds, vision is the most sensitive, and the intelligent bird repellent device to launch a "rod-like" green laser and regular sustainable wave type stranding, so when birds like to see a green stick, instinct as a danger signal, so that it produces intimidation or adaptation effect, in order to achieve the effect of bird repellent, without harming birds. The automatic laser bird repelling device can fully cover the scanning, continuously strafing the entire substation or tower, over time, it will affect the ecological environment of nearby birds for survival, habitat and foraging, making birds gradually produce fear, and eventually stay away from the protected area, fundamentally preventing and eliminating the occurrence of substation tripping accidents caused by bird damage.



Features:

·The PTZ adopts all-weather environment design, high-strength aluminum alloy

·Precision-cast shell, with sunshade and wiper. Industrial-grade vehicle power supply circuit design, power supply voltage range DC11V-18V

·Pan 360°endlessrotation, looking up (+90°~-90°) without blind spots

·Pan preset speed 100°/S, pan tilt preset speed 80°/S

·256 preset positions and 6 tour tracks can be set

·Imported dedicated bird repelling laser, 520nm.

·Laser coverage diameter 100M.



PTZ Specifications:

Pan preset speed

100°/s

Tilt preset speed

80°/s

Pan manual speed control

0°~60°/s

Tilt manual speed control

0°~40°/s

Pan angle

360°endless rotation

Tilt angle

+90°~-90°

Preset

256 preset positions, 6 tour tracks

control method

RS485, built-in 16 protocols, baud rate from 2400Bps to 19200Bps optional, RS485

Relative humidity

90%

Protection Level

IP66

Working temperature

-35 ℃ - 65℃

Power

DC-12V (50VA)

Impact Requirements

≥4G

Weight

6Kg
