GS-Q05
Product Description

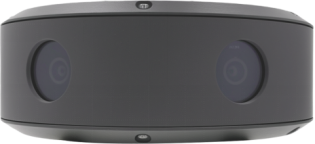

The panoramic camera integrates four eyes 360° ring splicing camera and other functions. It is mainly used in petroleum and petrochemical industry, coal industry, construction industry, power industry and other industries, which is suitable for the construction workers, construction workers, construction supervision, safety officers, Temporary construction operations, on-site comprehensive monitoring, construction site video return, remote expert guidance, on-site high and low temperature detection, sound and light alarm, etc. under the explosion-proof environment.
FEATURES:
l Equipped with a four-eye 360° ring splicing camera to carry out all-round observation without dead Angle in the field of vision;
l Visible light adopts 1/2.8" progressive scan image sensor, 4.0 Mega pixel HD image quality;
l Starlight night vision, low light environment output bright and clear color picture;
l Support standard ONVIF protocol, national standard GB28181;
l It can be configured with a variety of AI algorithms, including body behavior (smoking, phone call and other behavior analysis), face recognition (including helmet detection), perimeter intrusion, security protection equipment, etc.
l Support video data, alarm data quickly upload background;
l Itprovides standard SDK development kit to connect with management and control platform;
SPECIFICATIONS:
|
Specification |
Function |
|
Camera( Circular splicing) |
Sensor type: 1/2.8", Progressive Scan CMOS; Output: 4 channels; Maximum resolution: 4.0 Mega Pixels (2560*1440); Minimum illumination: 0.002Lux(color mode); 0.0002Lux(black and white mode); Electronic shutter: 1/50-1/100,00 seconds; Lens: Prime focus 2.0mm; Wide dynamic range: ≥120dB; SNR: ≥56dB; |
|
Video coding |
H.264 |
|
Video frame rate |
PAL:1 to 25 frames per second |
|
Stream type |
Video Stream |
|
Coding resolution |
Fixed Focus main stream 2560×1440@25fps; Fixed focus auxiliary stream 1: 1280×720@25fps; |
|
Audio Input |
1 channel LINE IN RCA Interface |
|
Audio Output |
1 channel LINE OUT RCA Interface |
|
Audio compression standard |
G.711A;G.711Mu;AAC;G.726;MP2L2;G.722 |
|
Audio sampling rate |
8KHz/16KHz/32KHz/48KHz/64KHz |
|
OSD information superposition |
Name, date, week, address, font, coordinates, etc |
|
Intelligent Functions |
Built-in body behavior smoking, phone and other algorithms, face recognition and other AI algorithms; |
|
Network protocol |
HTTP;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP;DNS; DDNS;PPPOE;IPv4/v6;SNMP;QoS;UPnP;NTP |
|
Access Standard |
ONVIF;GB/T28181 |
|
Ethernet |
Gigabit Ethernet |
|
Interface |
One Gigabit network port, one power port. |
|
Power Supply |
DC12/1.5A Input |
|
Consumption |
≤15W |
|
Appearance requirement |
The body machine adopts aluminum alloy, with anodized treatment |
|
Overall Dimension |
Can be customized according to the needs from customers. |
|
Weight |
≤3kg |
