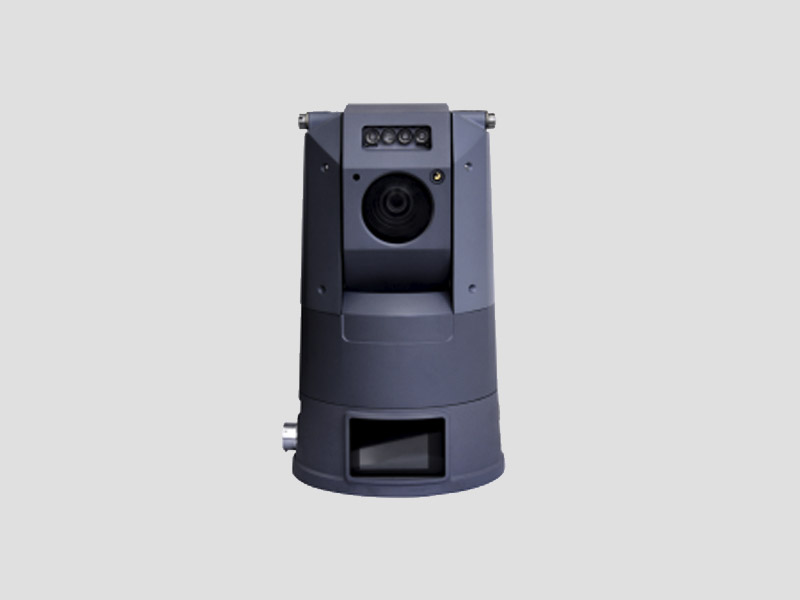

GS-D906-5G
Product Description
GS-D906 series 5G dual-camera HD intelligent dome camera is an integrated wireless video emergency command product with comprehensive functions,convenient portability, ultra-high equipment integration, built-in high-performance lithium battery pack, with touch HD display, waterproof and shock-proof features, which can meet the special requirements of temporary control and rapid installation. When performing tasks, the equipment can be quickly temporarily placed in the position that needs to be monitored, or on the telescopic tripod, or directly adsorbed on the vehicle, moreover the equipment can be easily removed at the end of the task.
Features:
lMain and secondary lenses, front and back.
lHD touch screen with screen protection cover.
l120° large wide-angle camera.
lIntegrated structure design, built-in antenna, protection grade up to IP66.
l Horizontal direction 360° continuous rotation, vertical -30°~90°, no monitoring blind area.
l Laser assisted positioning.
l Support three Micro SD cards, and each card supports 256 GB.
l Support dual stream and mobile phone monitoring.
l Support two-way voice intercom (built-in speaker and pickup, external Bluetooth or hand microphone, three ways to choose).
l Built-in Wifi module, you can use mobile phone, ipad directly preview video,and mobile phone, ipad can also surf the Internet through the dome camera.
l Built-in lithium battery, the using time can be up to 8 hours, long use.
l Magnetic composite sucker design, simple deployment, optional bracket, fixed disc and professional carrying case, easy to move
Applications:
It is suitable for field law enforcement, investigation and control, security, emergency command, emergency repair, line patrol management and other industry applications, such as public security, traffic police, fire protection, road administration, urban management, transportation, courts, prisons, forestry, electric power, water conservancy, environmental protection and other units.
PTZ Specifications:
|
Item |
Description |
|
|
Video |
Video Compression Format |
H.264 |
|
Dual Stream |
Supports dual stream, real-time stream and storage stream |
|
|
Resolution |
1080P:1920*1080 |
|
|
Optical Camera |
Camera |
2.0 Mega Pixel,33X Optical;16X Digital |
|
Min.Illumination |
0.001Lux Color ; 0.0005Lux Day/Night |
|
|
Sensor |
1/2.8” Progressive Scan CMOS |
|
|
Electronic anti-shake |
Support |
|
|
Wide-angle camera |
Pixel |
2.0 Mega Pixel |
|
Resolution |
1920*1080 |
|
|
Field Angle |
Horizon≤120° |
|
|
PTZ |
Pan Range |
360°continuously rotation |
|
Tilt Range |
-30°～90°rotation |
|
|
Number of cruise scans |
No limit |
|
|
Speed |
0.1°- - 40°/S |
|
|
PTZ positioning accuracy |
0.3° |
|
|
Self-locking force of PTZ |
With |
|
|
Automatic defogging |
Support |
|
|
Preset Positions |
255 |
|
|
Handle |
With |
|
|
Audio Frequency |
Audio compression standard |
AAC、G711 |
|
walkie-talkie |
Support |
|
|
Audio Input |
Dual MIC, hand microphone, Bluetooth, support three kinds of input, input three choices |
|
|
Audio Output |
Speaker, hand microphone, Bluetooth, support three output optional, output one of three |
|
|
Network |
Network Interface |
10/100M RJ45 Interface |
|
3G/4G |
3G、2G4G full Netcom module, support 4G and downward compatible with 3G, 2G |
|
|
5G |
Support 5G module, downward compatible with 4G, 3G |
|
|
Local |
Support 10/100M network audio and video transmission |
|
|
Support local network upgrade, video export, debugging, configuration |
||
|
Bluetooth |
Built-in antenna; Bluetooth device can be connected |
|
|
WiFi |
Support 802.1b/g/n; Can connect to the hotspot to use mobile phone, IPAD operation |
|
|
2.4GHz |
||
|
Support agreement |
TCP/IP,HTTP,DHCP,DNS,RTP/RTCP,RTSP,PPPOE，FTP |
|
|
Storage |
SD Card |
3 SD card，each one can support 256G(Max) |
|
Positioning |
Satellite |
Support Beidou /GPS dual mode positioning |
|
Intelligent |
Intelligent Algorithm |
Support face recognition or human-vehicle detection capture, extensible helmet recognition, behavioranalysisrecognition (customized) |
|
Light |
IR |
Infrared light filling distance 100m
|
|
LASER |
Laser light filling distance 300m |
|
|
Protocol |
Interface Protocol |
Support private protocol, extensible support ONVIF,GB28181,B interface |
|
Others |
Lens Defogging |
Support |
|
Rated voltage |
Built-in battery voltage: DC12V |
|
|
External power supply: DC7-16V, wide voltage design |
||
|
Total rated power |
Normal 15W / 20W full load |
|
|
Charging adapter |
DC16.8V 3A |
|
|
IP Grade |
IP66 |
|
|
Installing Ways |
Magnetic adsorption, fixed support, tripod installation |
|
|
Weight |
4.3KG, the total weight of the protective box is 10KG |
|
|
Battery |
Built-in 10Ah lithium battery |
|
|
Overall Dimension |
Φ167*275（mm） |
|
|
Working Environment |
Temperature：-20℃～+40℃ Humidity：95% |
|
