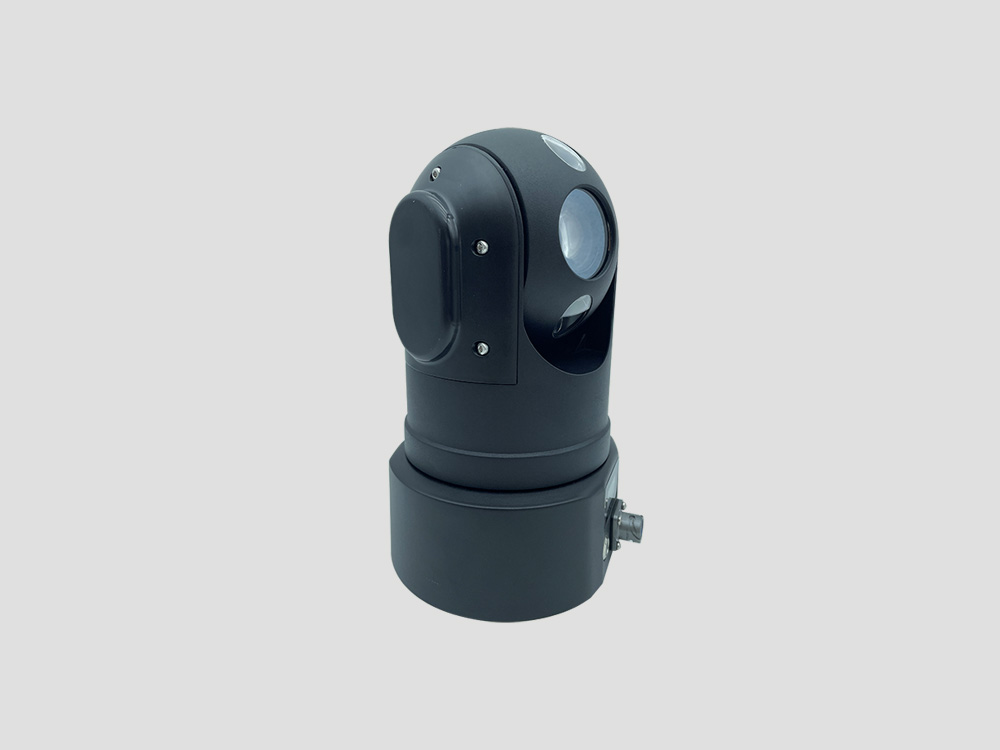

4G HD IP Rapid Deployment Dome PTZ Camera

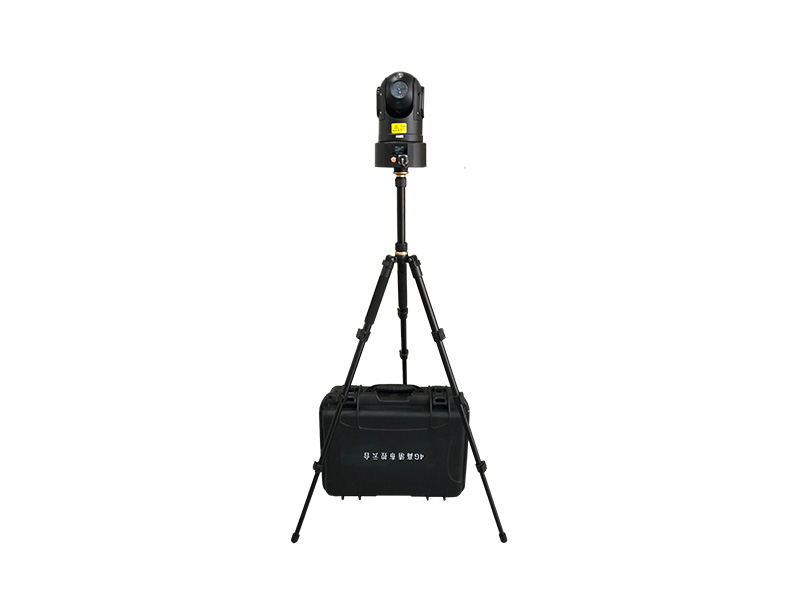

4G deployment dome PTZ camera is a comprehensive and portable wireless video emergency command integrated product, with ultra-high equipment integration, built-in high-performance lithium battery pack, external high-definition display control terminal, waterproof and shock-proof features, which can meet the special requirements of temporary control and rapid installation. When performing tasks, the equipment can be quickly temporarily placed in the position that needs to be monitored, or on the telescopic tripod, or directly adsorbed on the vehicle, and the equipment can be easily removed at the end of the task.

Application:

Applicable to the field of large mobility of the application environment, such as, investigation, public security, fire, traffic, insurance claims settlement and other fields.

Features:

l 1080P HD video,  video encoding, backward compatible with H.264, dual stream;

l Support OLED screen to display equipment status: 4G signal strength, dialing status, positioning status, battery power, storage capacity and other equipment status information;

l SupportGB28181, B interface, cmsv9, Hikvision, Dahua and private protocols;

l 4G full Net-com, support any operator network;

l Support APN, VPN working mode;

l Built-in GPS/Beidou module, precise positioning;

l Built-in WIFI, can support AP and STA working modes at the same time;

l Device status visualization, support device side, PC, mobile phone client can get real-time battery power, 4G network status, video status, location information;

l Support TF card storage, support any capacity, support encrypted storage;

l Built-in pickup, built-in speaker, support two-way voice intercom;

l The storage time can be set arbitrarily for the stored video files (adjustable from 1-120 minutes) without destroying the data, so as to facilitate the management of segmented recordings in different situations;

l Integrated design, full built-in antenna;

l Built-in battery, support continuous work for more than 8 hours (under normal temperature environment)

l Integrated design, high suction magnet at the bottom, fast installation;

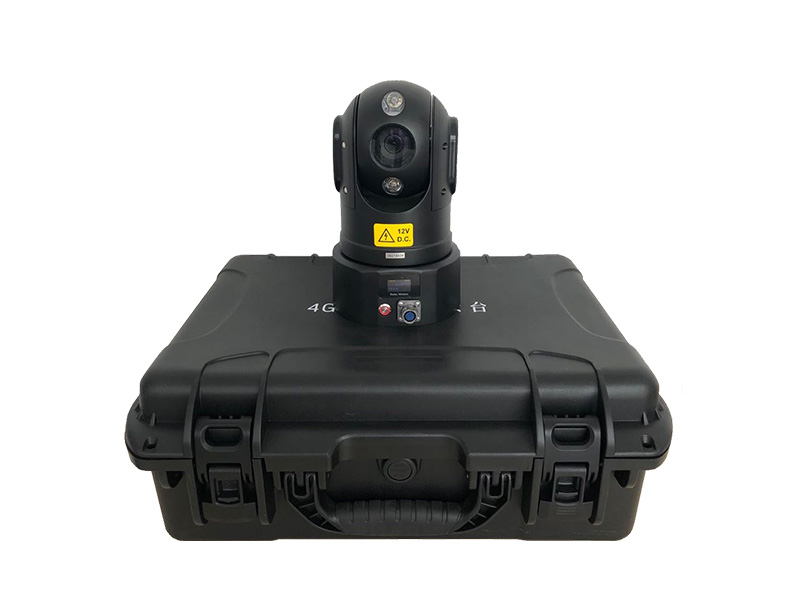

l IP66 protection grade body, IP67 portable protective case;



4G full Netcom,H.264

GPS/BD

WIFI

TF card encrypted storage

Built-in battery can work continuously for more than 8 hours

OLED status display

Built-in pickups, speakers, support two-way intercom

Waterproof grade IP66

Specification:

Item

Description

Operating System

Linux

Video

Video compression format

H.264Video compression coding

Dual stream

Main sub-stream

Resolution

1080P/720P/D1

Preview function

Support

Audio

Intercom

Built in speaker, built-in pickup, support two-way intercom

Display

Support

0.91 "double color OLED display,



Display equipment operation information

Local Control

Support

3D control keyboard (optional)

Storage

Local storage

1 TF card, unlimited capacity, encrypted storage

Wireless Network

5G/4G/3G

Support all Netcom

WIFI

Built in WiFi module, supporting 802.11b/g/n

Hotspot mode

Support AP hotspot mode, and support terminal connected devices to access the Internet

Support connection router STN mode

Positioning

Gps/ Beidou

Built in gps/bd dual mode

Expansion Interface

RJ45 network interface, analog video output, 485 interface, charging interface

Camera

Image sensor

1/2.8" Progressive Scan CMOS

Signal system

PAL/NTSC

Illumination

Color:0.05Lux @ (F1.6,AGC ON)

White black:0.01Lux @(F1.6,AGC ON)

Day/night

ICR ir filter type

S/N

>52dB

Electronic shutter

1/1 S ~ 1/30,000 S

Digital zoom

16X

Resolution

1920x1080/1280*720 25fps/30fps

White balance

Automatic 1/ automatic 2/ indoor / outdoor / manual / sodium lamp / fluorescent lamp

3DNoise reduction

Support

Optical zoom

20X

IR

60-80M

PTZ

PTZ protocol

PELCO-D/P

Pan rotation angle

360°

Tilt rotation angle

0°~90°

Power Supply

Battery

Large capacity lithium battery pack, remaining power prompt

Charging time

<4HRS

Working time

>12HRS(room temperature)

Working environment

Temperature

-20℃~+50℃

Humidity

<90%

Measure

Main machine (max height * max diameter)

244*146mm(Hmax*Dmax)

Weight

Net weight4kg

Gross weight:11kg



Standard accessories:

IP67 protection box *1/ triangle bracket *1/ tray *1/ charger *1/220v power line *1/ aviation line *1
