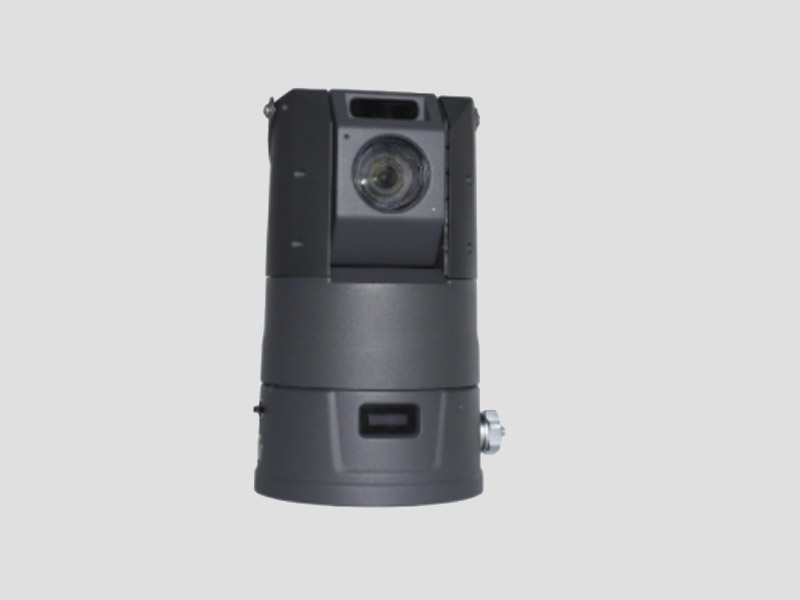

GS-D905-5G
Product Description:
The 5G high-definition control pan/tilt is a comprehensive and easy-to-carry wireless video emergency command integrated product. It has a high degree of equipment integration, a built-in high-performance lithium battery pack, and an external high-definition display control terminal. It is waterproof and shockproof, which can meet the special requirements of temporary deployment and quick installation. When performing tasks, the equipment can be temporarily placed in the location that needs to be monitored, or on a telescopic tripod, or directly adsorbed on the vehicle, and the equipment can be easily removed at the end of the task.
Features:
l 1080P HD video, compatible with 264 video encoding, dual stream.
l Support full Netcom 5G dual card (default single card), support customized private network mode.
l Dual streams, flexible selection of main stream/sub stream code rate, intelligent code rate adjustment.
l Stream encrypted storage (optional).
l Built-in WIFI, support AP and STA working mode.
l Built-in GPS module, accurate positioning.
l Support SD card local storage, maximum support 128G.
l Built-in antenna integrated design.
l Built-in battery, can work continuously for no less than 10 hours (at normal temperature).
l Built-in pickup and speaker, support voice intercom function.
l Support base small screen to view the PTZ dome status: power, wireless signal, positioning information, SD card, etc
l Support power off and charging process screen information prompt.
l Support switch button for the multi-color status reminder.
l Support local monitoring and 3D PTZ control
l Metal body, 360-degree omnidirectional PTZ.
l Support handle carrying.
l Integrated design, equipped with high-attraction magnets at the bottom, easy to install
l Support vehicle installation,support outdoor inversion, IP66.
Application：
It is suitable for field law enforcement, investigation and control, security, emergency command, emergency repair, line patrol management and other industry applications, such as public security, traffic police, fire protection, road administration, urban management, transportation, courts, prisons, forestry, electric power, water conservancy, environmental protection and other units.
Specifications：
|
Product Name |
5G HD deployment dome camera
|
|
|
Operating System |
Linux |
|
|
Video |
Video Compression Format |
H.264 video compression coding |
|
Dual Stream |
Main stream and secondary stream |
|
|
Resolution |
1080P/720P/D1 |
|
|
Preview Function |
Support |
|
|
Storage |
Local Storage |
2 memory card slots, maximum 512GB |
|
Wireless Network |
Communication card slot |
Can support single or dual 5G modules (optional), support full Netcom or private network protocol |
|
WIFI |
Built-in WIFI module which couldsupport802.11b/g/n |
|
|
Hotspot Mode |
Support 4G AP hotspot mode, support router STA mode |
|
|
Position |
GPS |
Built-in GPS/Beidou module integrated |
|
Extension ports |
RJ45 network interface, charging interface |
|
|
Built-in pickup |
Support |
|
|
Built-in speaker |
Support |
|
|
Camera |
Sensor |
1/2.8" Progressive Scan CMOS |
|
Signal System |
PAL/NTSC |
|
|
Minimum Illumination |
0.005Lux @(F1.2,AGC ON) Color 0.001Lux @(F1.2,AGC ON) B/W |
|
|
Day and Night Mode |
ICR infrared filter type |
|
|
Electronic Shutter |
1/1s ~ 1/30,000S |
|
|
Digital Zoom |
16X |
|
|
Resolution |
1920x1080/1280*720 25fps/30fps |
|
|
White Balance |
Auto/manual/sunny/cloudy/dusk/incandescent lamp/sodium lamp/fluorescent lamp/one-time tracking/automatic tracking |
|
|
3D noise Reduction |
Support |
|
|
Protocol |
PELCO-D |
|
|
Optical zoom |
20X |
|
|
IR |
100M |
|
|
PTZ |
Pan rotation angle |
360° |
|
Tilt rotation angle |
-20°~90° |
|
|
Battery |
Large-capacity lithium battery pack, remaining power prompt |
|
|
Protection level |
IP66 |
|
|
Power |
charging time |
<5HRS |
|
Working time |
10hrs（room temperature） |
|
|
temperature |
-20℃～+60℃ |
|
|
Working Environment |
humidity |
<90% |
|
Size |
250*145mm（H*D） |
|
|
Weight |
N.W.：3.5kg |
|
|
G.W.：10kg |
||

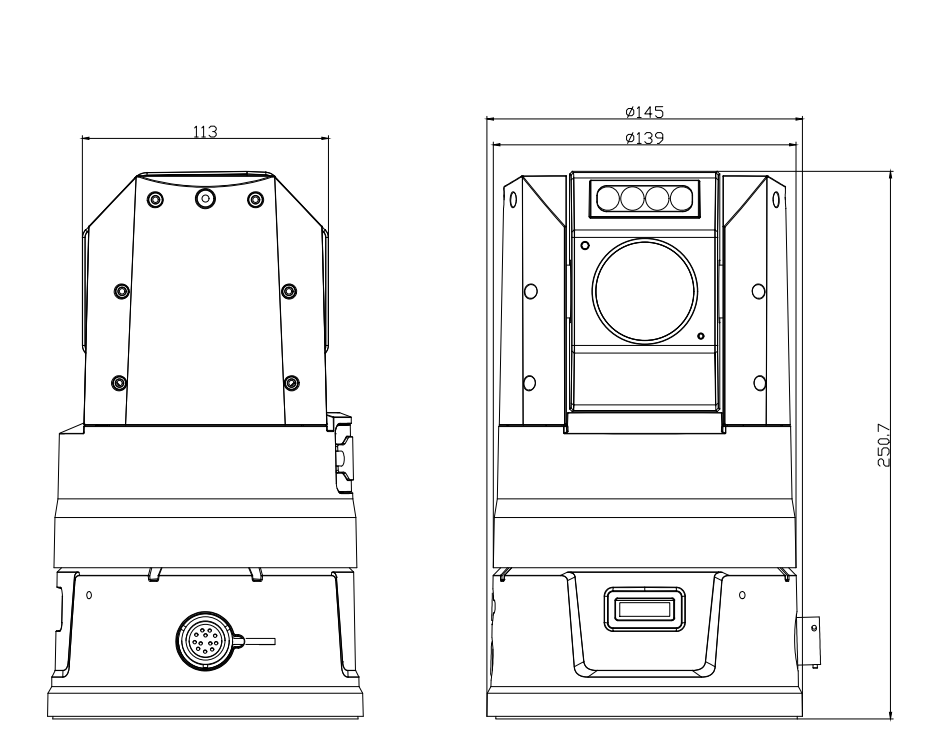

Dimension：
