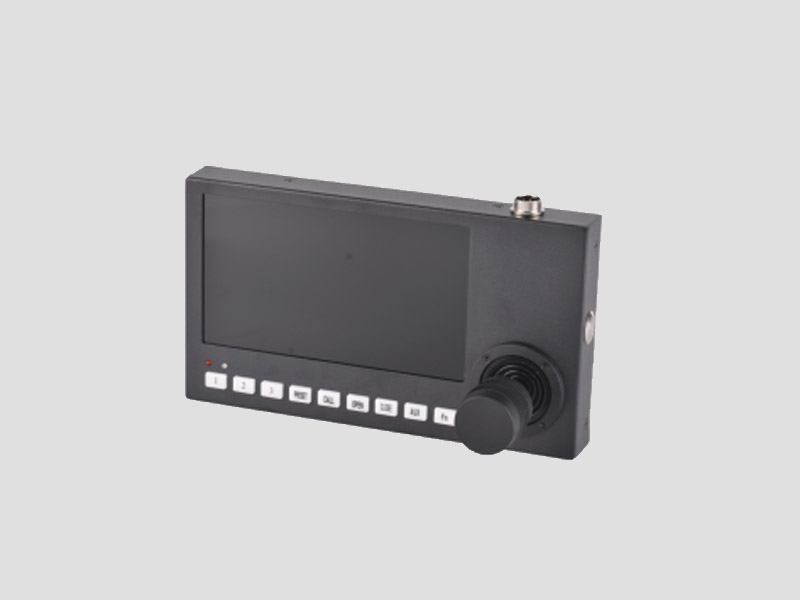

Model：GS-P07
Feature：
l 7-inch industrial screen, resolution: 1024*600
l A variety of input signals are optional
l Support the use of standard PELCO-D protocol, 3D PTZ control
l Optional: fixed baud rate, fixed address bit, vehicle capture/alarm function
l Perfectly suitable for portable/vehicle application scenarios
Specification：
|
Item |
Description |
|
|
Video Input |
Video Input |
VGA/AHD/AV/dual AV/four AV optional |
|
Other Interface |
Aviation Interface |
8pin composite interface |
|
Screen |
Monitor |
7 inch LED backlight |
|
Resolution |
1024*600 |
|
|
Brightness |
350nit |
|
|
Control Keyboard |
Joystick |
3D |
|
Preset |
Support up to 12 |
|
|
Adjustable Aperture |
support |
|
|
Baud rate |
2400/9600 adjustable |
|
|
Power Supply |
Operating Voltage |
12V |
|
Power Consumption |
<6W |
|
|
Working Environment |
Temperature |
-15℃～+60℃ |
|
Humidity |
10%-95%（no condensation) |
|
|
General |

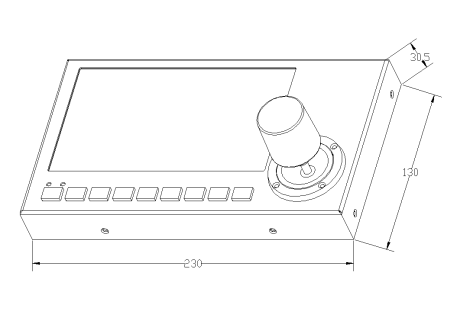

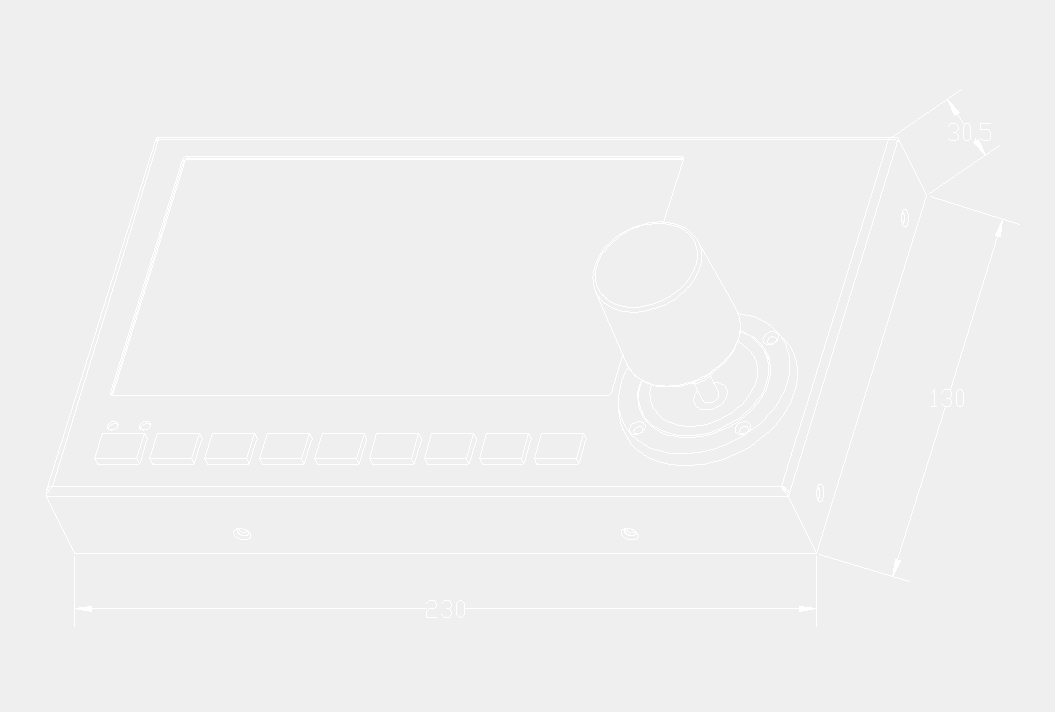

LWH |
230*130*30.5 |
|
Weight |
600g |
|
