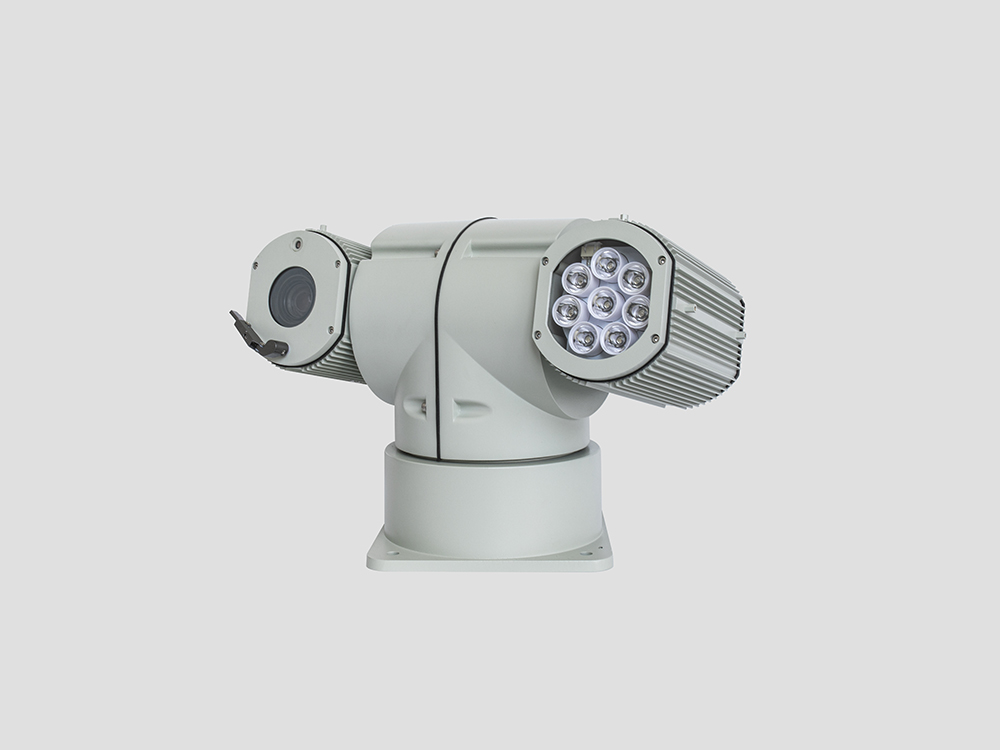

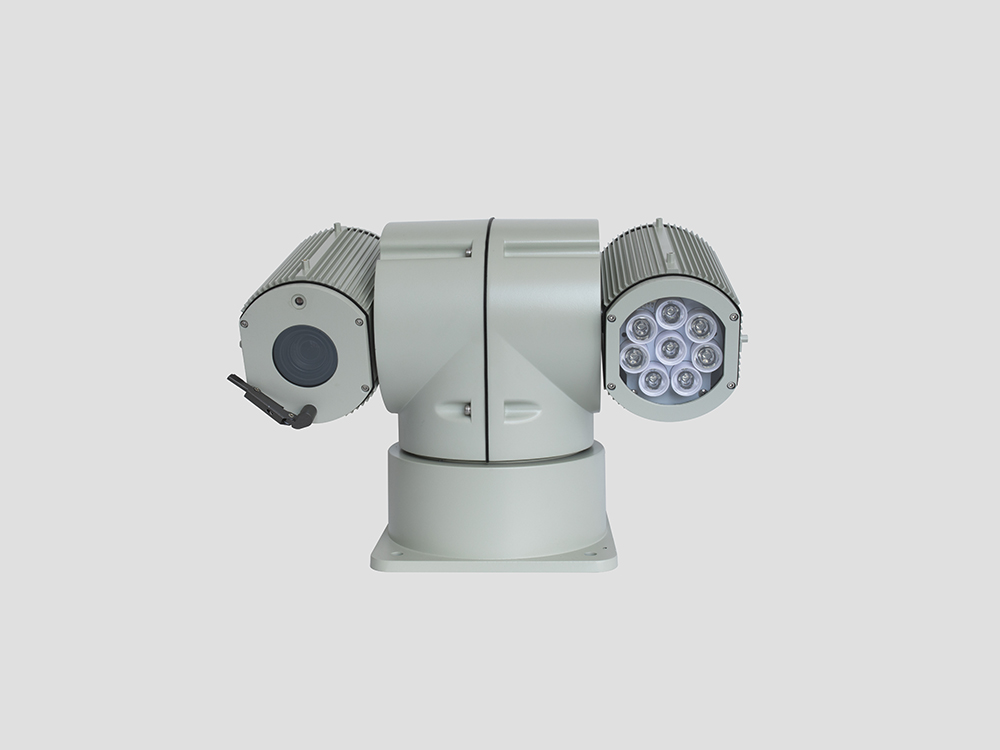

Vehicle PTZ camera

GS-T801series



Optional configuration: network, SDI, AHD

Fill light method: Infrared or white light



Features:

l The first independent defogging and defrosting module, which can really solve the camera and lens fogging problem caused by the temperature difference of indoor and outdoor environment.

l High-quality heating parts are used in the camerahousing, so that the wholehousingcan work together to form an effective anti-fogging and defogging conditions.

l PTZ adopts the integrated upper and lower structure so that the PTZ and infrared housing will not bump and dislocate.

l PTZ standard with original voltage regulator module, filter the instantaneous unstable current of the vehicle, so that the PTZ maintain a stable state.

l The whole PTZ system adopts 485 online upgrade, which is convenient for customizing and updating the PTZ program.



Night Vision Supplement:PTZ adopts imported array infrared lights,Multi-angle work together, the working life up to 30,000 hours,and thenight vision is 100-120 meters.

HD IP:PTZ support mainstreammegapixeldigital high-definition movement and HD SENSOR HD picture capture, compatible with mainstream HD platform, the maximum support 1080P output, support for dual-stream and high-definition capture, support IE browser.

SDI HD:PTZ support megapixel HD movement, HD-SDI digital interface output, megapixel digital high-definition image lossless, real-time transmission, no delay, a variety of resolution adjustable (1080p / 60 1080p / 30 1080p / 25 720p / 60 720p / 30 720p / 25).

Coaxial HD:PTZ support common AHD / CVI / TVI coaxial HD movement, and support coaxial HD DVR output, the image without any coding compression, full real-time high-definition picture coaxial transmission.

Product Technical Data:



PTZ Function



Pan preset speed

120°/s

Tilt preset speed

100°/s

Pan control speed

0°~80°/S

Tilt control speed

0°~60°/S

Pan range

360°endless rotation

Tilt range

+90° ~ -90°

Preset positions、Tracking

256 positions 6 tracking

Control Way

RS485, Built-in 16 protocol, Baud Rate from 2400Bps to 19200Bps optional

Relative Humidity

Less than 90%

IP Grade

IP66

Working Temperature

-35° ~ +65°

Power Consumption

DC10.8V-DC18V  /  AC24V (Optional)

Impact resistance requirements

≥4G

Wiper

Support

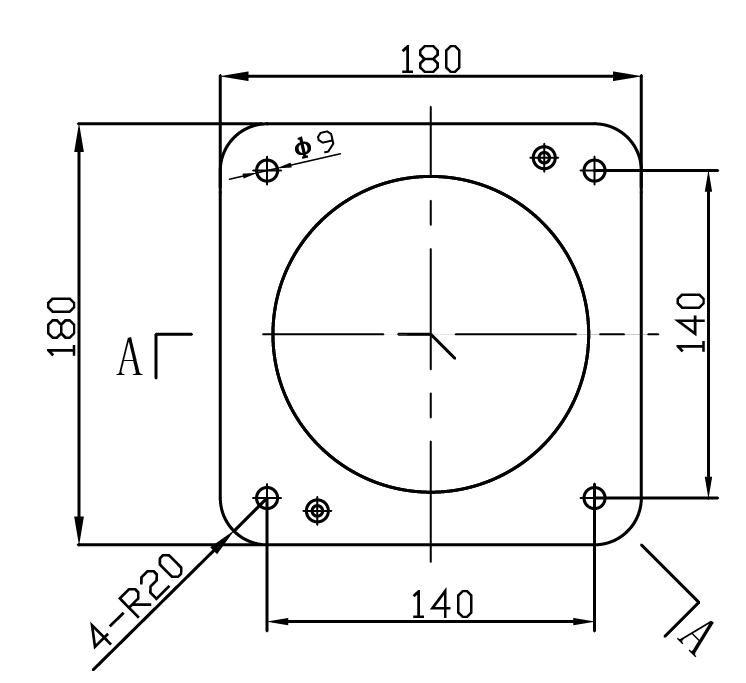

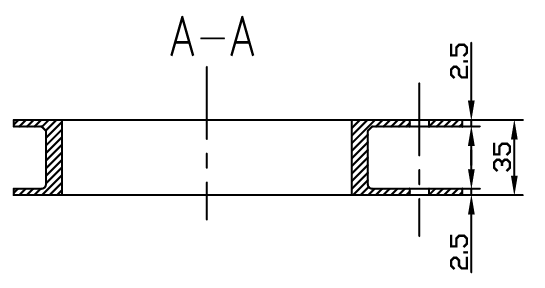

Installation

Variety of installation according to the environment

Weight

6kg



Camera parameters: (the Zoom module is optional)

Sensor

1/2.8 Exmor CMOS

Zoom

20X Optical zoom

12X digital zoom

Focal Length

f=4.7mm-94mm

Effective Pixels

2MP 1080p

SNR

≥50dB

Minimum Illumination

0.001Lux (color)

0.0001Lux (W/B)

BLC

ON/OFF

White balance, aperture, focus

Automatic / Manual

Color/black and white automatic conversion

Automatic

Electronic Shutter

1/1~1/10,000s

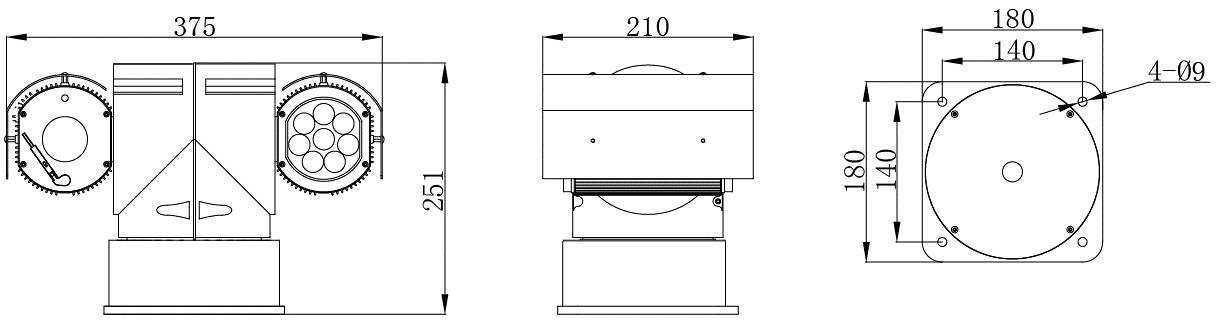

Dimension (mm)
