Multi-camera low-power power PTZ camera


Model:GS-D905-HD-4G




Features



–Adopt low power consumption design, support wide voltage input, which is suitable for solar power supply. It is also suitable for places with low power consumption or solar power supply, such as electric power industry and urban roads.

– The camera adopts a panorama + detail industrial integration design scheme, the panorama adopts the main and secondary dual camera design which can realize vertical adjustment up and down, and the detail adopts the pan-tilt camera design.

– The main PTZ camera supports pan 360°, tilt -90°~ +90° rotation.

– The sub-head camera supports vertical -90°~ + 20° rotation.

– Support three working modes: Sleep mode, low power mode and full power mode.

– H.265 high-efficiency video coding, effectively reducing the bit rate, compatible with H.264

–Support standard ONVIF, GB28181 and other interconnection standards, China Southern Power Grid and State Grid and other industry protocols.

– Support IP66 protection level, can be used in harsh environments.

–Support 6000V lightning protection, anti-surge, anti-surge.

–Support 4G (Mobile, Unicom, Telecom) network transmission.





Camera





Camera




Sensor

Panoramic main camera: 1/3” 16 million pixel progressive scan CMOS;

Panoramic secondary camera: 1/1.8" 2 million pixel progressive scan CMOS

Close-up: 1/2.8" 2 million pixel progressive scan CMOS



Minimum Illumination

0.001Lux @(F1.8,AGC ON),B/W:0.0001Lux @(F1.8,AGC ON)



Shutter

1~1/30000s



Day and night mode

ICR color to black



WDR

120dB ultra wide dynamic



Focal Length

Panoramic main camera: 2.8mm; panoramic sub-camera: 5mm

Close-up: standard 20x optical zoom, f=4.7~94mm, 16x digital zoom (optional 30x)



PTZ




Pan Range

360°continuous rotation



Pan Speed

Pan keying speed: 0.05°~40°/sec, the speed can be set



Tilt Range

-90°~+90°



Tilt Speed

Tilt keying speed: 0.05°~30°/sec, the speed can be set



Zoom

support



Preset Positions

256



Cruise Scan

support



Power off memory

support



Watch Function

support



PTZ Limit

support



3D Positioning

support



Video




Encoding Format

H.265/H.264



Maximum Resolution

Panorama main camera: 4640×3488@30fps

Panoramic secondary camera: 1920×1080@30fps

Close-up: 1920×1080@30fps 20X 2 million

4096×2160

Rate Control

CBR/VBR



Subtitle Settings

Time, date, station logo display, subtitles can be set



Privacy Mask

Support



Image Settings

Brightness, Contrast, Saturation, Sharpness



Digital Noise Reduction

Support



Motion Detection

Support



Video Freeze

Support



Image Flip

Support up and down, left and right flip



Strong Light Suppression

Support



Fog Penetration

Support



Anti Shake

Support



Internet Function




Network Protocol

TCP/IP,HTTP,DHCP,DNS,RTP/RTCP,RTSP,PPPoE,DDNS,802.1x,Qos,SMTP,UPnP,SNMP



User Visits

6



Internet Standard

ONVIF,National standard (GB/T 28181-2011)



Industry Standard

State Grid, China Southern Power Grid



System Function




Application Programming Interface

SDK



Position

Support GPS/Beidou



Safety

Multi-level user management and custom permissions, IEEE 802.1x network access control, anonymous access, black and white lists, IP address filtering, etc.



External Interface




Network Interface

1×RJ45,1×10Base-T/100Base-TX



Storage Interface

1×TF Card



Power Interface

1×DC12V



Wireless Interface

Support 4G full Netcom, wifi, bluetooth



Wired Interface

RS485(MODBUS protocol),USB



Operating Environment




Working Temperature

-40℃~+65℃



Working Environment Humidity

10%~95%,non-condensing



Degree of protection

IP66 6000V lightning protection, anti-surge, anti-surge, in line with GB/T17626.5



Power

DC12V±25%



Power Consumption

Full power consumption mode: Maximum power consumption ≤15W

Low power consumption mode: Maximum power consumption ≤ 2W

Sleep wake-up mode: Power consumption ≤0.2W



Physical Properties




Weight

3.8Kg

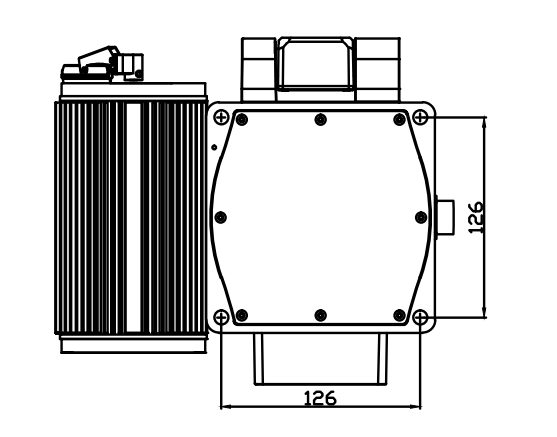

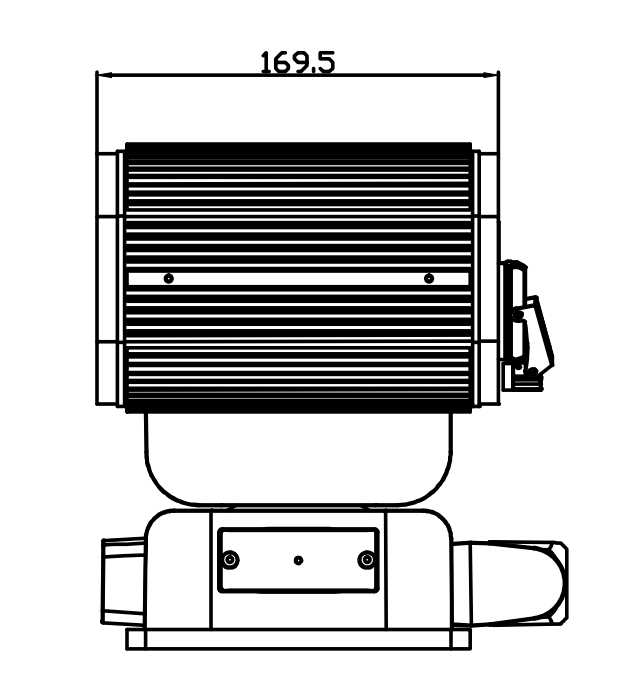

Dimension

115mm×170mm×126mm



Installation

Base installation
